Top Running Double Girder Overhead Crane Kit with Hoists, 10 Ton Capacity

Yale
Regular price

$ 25,780.00

Details

This listing is for the Crane Kit only. Contact Bohl Crane for more information regarding kits and other accessories for this product.

Not quite what you're looking for? Bohl Crane's in-house engineering department is on hand to design the right solution for your application! Please contact us for custom and modified designs.

    If other specifications, drawings, or diagrams are needed please contact Bohl Crane, Inc. for additional information.

    Typical Lead Time: 5 - 7 Working Weeks (Drop Shipped Item)

    Lead times may vary and is determined by a variety of factors. Contact Bohl Crane, Inc. for precise lead times and product availability.

    Shipping via Freight

    We only ship to the 48 Contiguous United States. All shipping is paid by the buyer. We do not ship on weekends or holidays. We do not ship to P.O. Boxes. We do not ship internationally. If special shipping services are needed please contact us prior to purchasing the item. Click here to read our full shipping policy.


    With capacities up to 10 tons and spans of up to 82 feet, single girder cranes make material handling easy and safe. A precision engineered under-running hoist offers quiet operation. All operations are controlled by a push-button pendant station supported from an independent sliding track. If you require the crane to be operated from radio remote control we can offer that also. Typical options may include but are not limited to: variable frequency control, radio remote control, dual hoist arrangements.


    - One (1) Yale YK wire rope hoist with motorized trolley
    - Two (2) Underhung formed channel end trucks
    - One (1) Control panel with 2-step infinitely variable VFD for bridge
    - One (1) Magnetek pendant controller and cable with EZ-Connect electrical package
    - One (1) Electric festoon system running the length of the bridge beam (50 ft.)
    - One (1) Assembly Manual
    - One (1) Maintenance and Parts Manual

    Included: Hoist Owners Manual, Hoist Inspection Test Record, Wire Rope Certificate, Hook Forging Certificate, Standard Push Button Station, Plug-in Connector for Pendant Cable


    - **These specifications are a general example and do not reflect the configuration selected above. Girder size, end truck configuration, rail sizing, and all other details may vary. Please contact us with your desired configuration and we can provide specifications and drawings.**

    - This listing is for the above listed material only. The runway rails, runway conductor bar, and bridge beam(s) are not included in this listing. Fabrication and installation are not included in this listing. If you would like our trained technicians to assemble and/or install the crane for you please contact us for a free quote!

    - This crane kit is designed to fit a ASCE30 rail. Please contact Bohl Crane, Inc. if you require this crane kit for a different runway rail size.

    - The girder type listed above is only a recommendation. The adequacy of the bridge girder and the joint connection for the crane application is the responsibility of the buyer and should be verified or determined by qualified personnel. The buyer is responsible for ensuring that the final bridge crane assembly is in compliance with CMAA specifications and/or any other local requirements.

    - The installation procedure requires special skills and tools to ensure safe and reliable operation of the product. Installation work shall be carried out only by authorized service personnel or an experienced service technician authorized by the manufacturer or manufacturer’s representative.

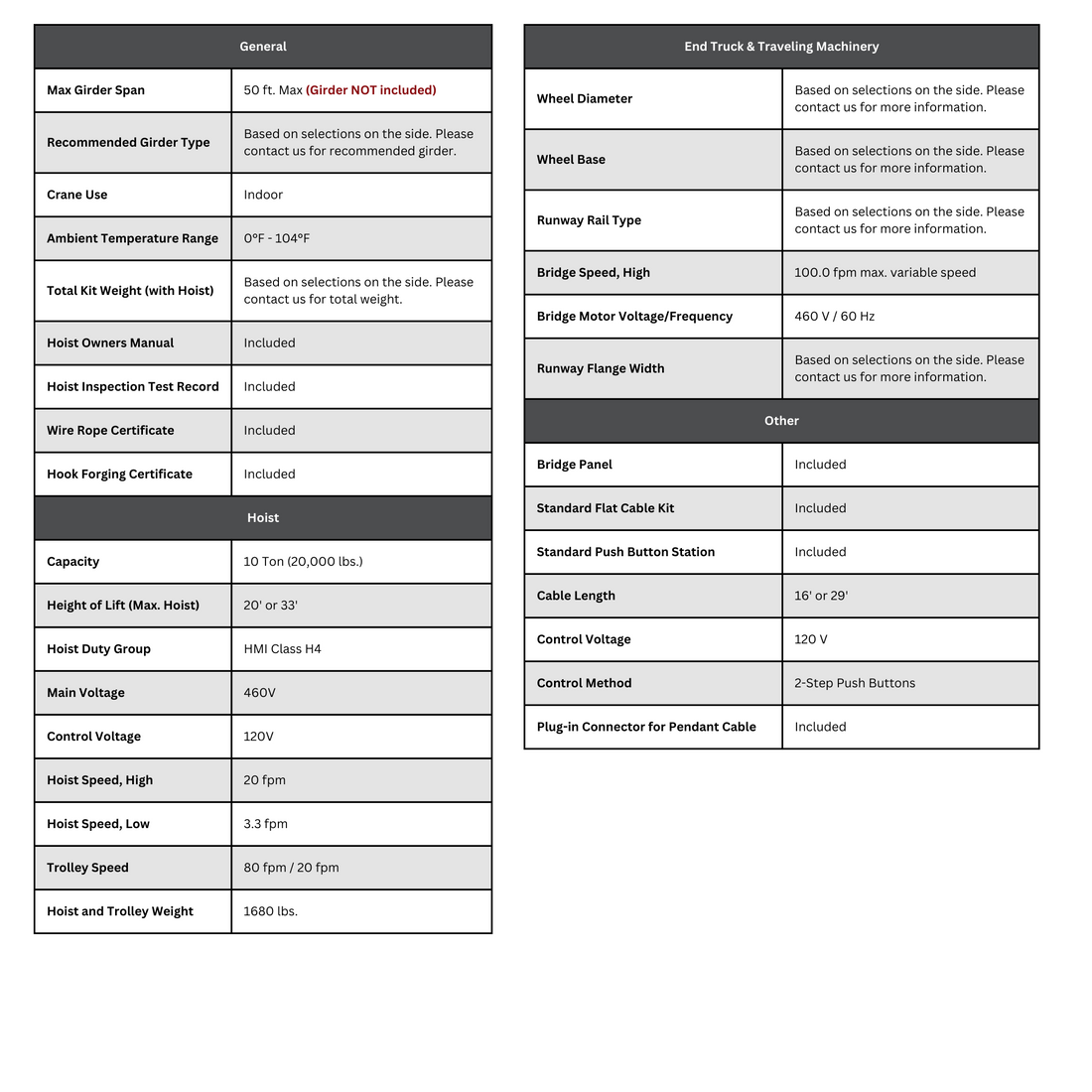

    Specifications

    Ambient Temperature Range
    0°F - 104°F
    Bridge Motor Voltage and Frequency
    460 V / 60 Hz
    Bridge Speed
    100.0 fpm max. variable speed
    Cable Length
    16' or 29'
    Capacity
    10 Ton (20,000 lbs.)
    control
    120 V; 2-Step Push Buttons
    Environment
    Indoor Crane Use
    Girder Max Span
    50 ft. Max (Girder NOT included)
    Hoist Duty Group
    HMI Class H4
    Hoist Speed
    3.3 fpm (Low); 20 fpm (High)
    Max Lift Height
    20' or 33' (Max. Hoist)
    Recommended Girder Type
    Based on selections above. Please contact us for recommended girder.
    Runway Flange Width
    Based on selections above. Please contact us for more information.
    Runway Rail Type
    Based on selections above. Please contact us for more information.
    Trolley Speed
    80 fpm / 20 fpm
    Voltage
    460V Main Voltage; 120V Control Voltage
    Wheel Diameter
    Based on selections above. Please contact us for more information.
    Wheelbase
    Based on selections above. Please contact us for more information.
    Weight
    Based on selections above. Please contact us for the total weight.
