Wall Mounted Cantilever Jib Crane | WC200

Gorbel
Regular price

$ 1,815.00

Capacity
Span
Details

Need help? Use our chat feature or give us a call!

This listing is for the crane unit only. Contact us for more information regarding hoists, kits and other accessories for this product.

Not quite what you're looking for? Bohl Crane's in-house engineering department is on hand to design the right solution for your application! Please contact us for custom and modified designs.

Typical Lead Time: 5 - 18 Working Days (Drop Shipped Item)

Shipping via Freight

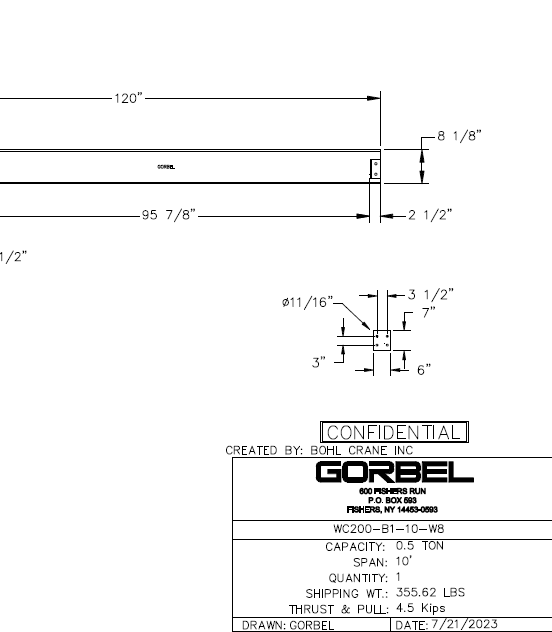

The Wall Cantilever (WC200) provides hoist coverage and 200° rotation for individual use in bays, along walls or columns of plants, or as a supplement to an overhead crane or monorail system. The jib has the advantage of providing maximum lift for the hoist, since it can be installed very close to the underside of the lowest ceiling obstruction.


- Capacity up to 10,000 lbs.
- Coverage: circular, Standard spans to 20'
- 200 degree rotation
- The fittings contain bronze bushings and oil-impregnated bronze thrust washers which provide for easy rotation and superior load positioning
- Fabricated steel fittings provide excellent torsional rigidity
- Pre-engineered for use with powered hoists. A factor of 15% of the jib crane capacity is allowed for the hoist and trolley weight with an additional 25% of the capacity allowed for impact, thus giving full rated capacity use of the jib


Specifications

boom assembly
Included
design impact
25%
end stops
Included
fusible disconnects
Not Included
h u b
Wall Mounted
rotation stops
Not Included
tagline
Not Included
tether track
False
wall brackets
Included
warranty text
10 Years
