Vestil Steel Adjustable Spreader Beam
Typical Lead Time: 2-30 working days (Drop Shipped Item)
Shipping: Freight (Please contact Bohl Crane)
Overview:
The adjustable spreader beam is ideal for the manufacturing and maintenance facilities. The steel construction keeps the unit durable and strong for a lifetime of use. A test certificate is shipped with the beam.
An adjustable spreader beam model lifts uneven loads and keeps them level with increased safety. Includes one upper bail and two specialty designed bail/sling holders. Bails are adjustable in 4" increments and slide between two C-channels.
Features:

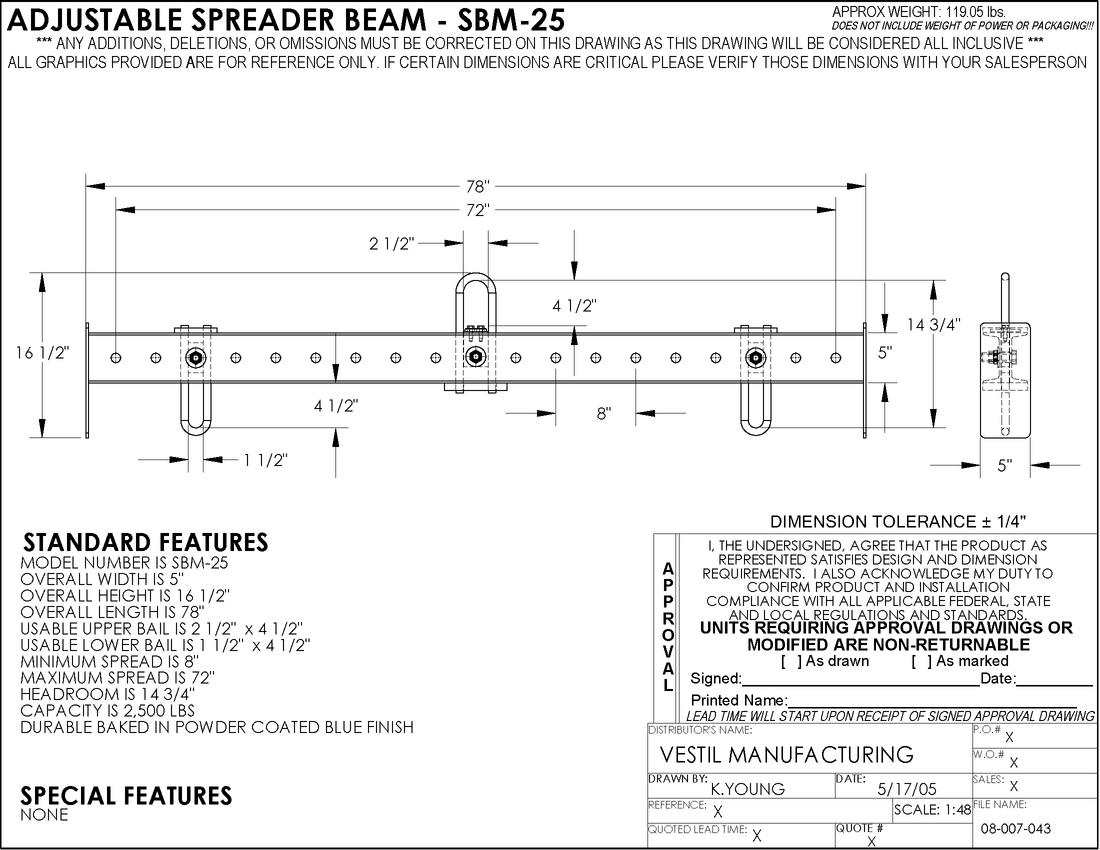

- SBM-25
- Designed to lift and move uneven and awkward loads
- Complies with ASME B30.20-1993 standards
- Includes two lower bails and one upper bail standard for added versatility
- Welded steel construction for heavy duty performance
- SBM-BFB-100-6
- Designed to lift and move uneven and awkward loads
- Welded steel construction for heavy duty performance
- Adjustable bail to fit a variety of sizes
- Large capacity for use with items both large and small
This listing is for the spreader/lifting beam only. Contact Bohl Crane for more information regarding other accessories for this product.
| PRODUCT NUMBER | SBM-25 | SBM-BFB-100-6 |
| UNIFORM CAPACITY | 2,500 lbs. | 10,000 lbs. |
| MIN/MAX SPREAD | 8 in./6 ft. | 24 in./6 ft. |
|
HEADROOM |
14-3/4 in. | 25-1/2 in. |
| UPPER BAIL WIDTH/HEIGHT | 2-1/2 x 5 in. | 4 in. (W)/ 7-1/2 in. (H) |
| LOWER BAIL WIDTH/HEIGHT | 1-1/2 x 4-1/2 | 3 in. (W)/ 5-3/4 in. (H) |
| UPPER/LOWER BAIL THICKNESS | 3/4 in. | - |
| ASME | B30.20-1993 | B30.20-1993 |
| C-CHANNEL HEIGHT | 5 in. | - |
| COLOR/FINISH | Blue | Blue |
| MATERIAL | Steel | Steel |
| ASSEMBLY | Assembled | Assembled |
