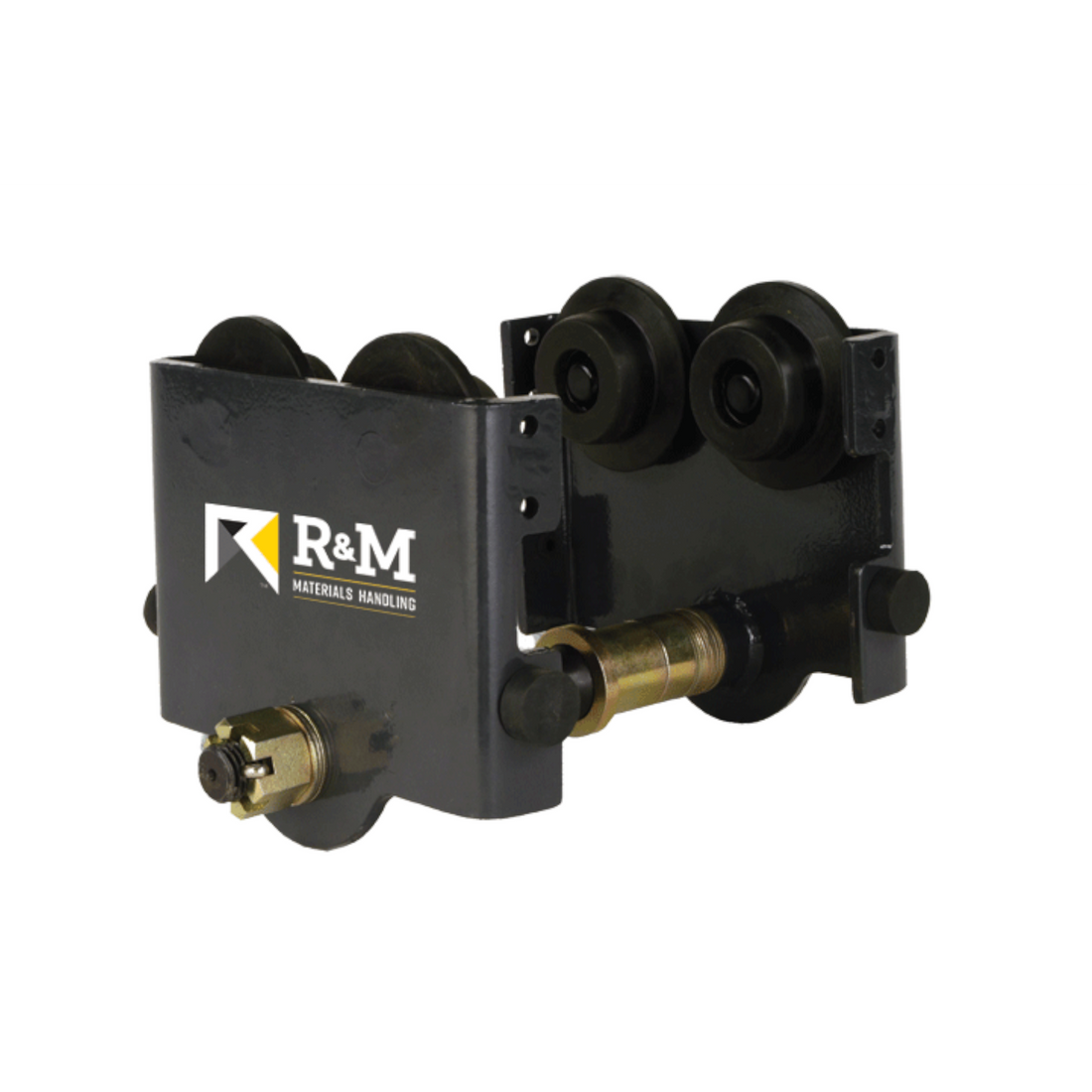

R&M RPT Manual Push Trolley | 1/4 Ton - 5 Ton Capacity
The cross shaft of the RPT push trolley is suitable for the top hook of the manual chain hoists or the manual lever pullers. The top hook of the hoist or puller can attach directly onto the cross shaft. The shaft is specially shaped to keep the top hook centered in place.
Single flange and crown‐tread type trolley wheels suitable for wide flange beams or tapered flange beams.
Wheel bearings are deep‐groove sealed ball bearing type, which are permanently lubricated. Safety drop lugs and rubber bumpers are standard.
Note trolley wheels are single flange and crown-thread type suitable for wide flange beams or tapered flange beams only.
Not quite what you're looking for? Bohl Crane's in-house engineering department is on hand to design the right solution for your application! Please contact us for custom and modified designs.
|CAPACITY (TON)||FLANGE RANGE (IN)||HEADROOM (IN)||WEIGHT (LB)|
|1/4||2.00 - 8.00||2.38||9|
|1/2||2.00 - 8.00||2.44||14|
|1/2||7.40 - 12.20||2.44||18|
|1||2.60 - 8.00||3.25||23|
|1||7.40 - 12.20||3.25||27|
|2||3.50 - 8.00||3.82||40|
|2||7.40 - 12.20||3.82||44|
|3||3.90 - 8.00||5.51||84|
|3||7.40 - 12.20||5.51||88|
|5||4.50 - 8.00||6.34||129|
|5||7.40 - 12.20||6.34||135|
Typical Lead Time: 5 - 6 Working Days (Drop Shipped Item)
