Magnetek LaserGuard™2 Collision Avoidance Systems
Typical Lead Time: 98 Working Days (Drop Shipped Item)
Shipping: UPS
Lead times may vary and is determined by a variety of factors. Contact Bohl Crane, Inc. for precise lead times and product availability.
Overview:
Magnetek's LaserGuard™ 2 is the most technologically advanced collision avoidance system featuring self-monitoring optical lasers. These lasers automatically check and relay required adjustment information to cranes to help avoid collisions and free up operators to work on other tasks. The LaserGuard™ 2 combines pushbutton programming for easy operation with flexibility to manage crane-to-crane and crane-to-wall operation.
Features:
- 8"-150 ft (0.2-45.7 m) detection range (Runway length may be greater than detection range)
- IP65 rated laser sensor
- 85-264 VAC, 120-370 VDC; 9-36 VDC (optional)
- Pushbutton programming for easy configuration
- 3 distance set-points, each with a relay contact
- Visible laser light allows for easy alignment and quick setup
- Status LEDs for seamless troubleshooting and diagnostics
- cULus Compliance: None
- CE Directives: None
- Laser Operating Range: 8 in.-150 ft.
- Laser Accuracy: 1 in.
- Control Outputs: Three form C relays rated at 10 A, 270 VAC, and 27 VDC
- Fault Output: One form C relay rated at 10 A, 270 VAC, and 27 VDC
- Reflector Type: DIN Mount
- Distance Setpoints: 3
- Sensing Range: 0.75-150 ft.
| PRODUCT NUMBER | SENSOR CABLE | MOUNTING BRACKET TYPE |
|
85-264 VAC, 120-370 VDC |
||
| LG2-H-4 |
10 Meter Cable | Hinged |
| LG2-H-4X |
10 Meter Cable |
Rigid |
| LG2-H-4-25 |
25 Meter Cable |
Hinged |
| LG2-H-4-40 |
40 Meter Cable |
Hinged |
| LG2-H-4-75 |
75 Meter Cable |
Hinged |
| 9-36 VDC | ||
| LG2-L-4 | 10 Meter Cable |
Hinged |
| LG2-L-4X |
10 Meter Cable |
Rigid |
| LG2-L-4-25 |
25 Meter Cable |
Hinged |
| LG2-L-4-40 |
40 Meter Cable | Hinged |
| LG2-L-4-75 | 75 Meter Cable | Hinged |
| 250 VDC | ||
| LG2-H-4-IR | 10 Meter Cable | Hinged |

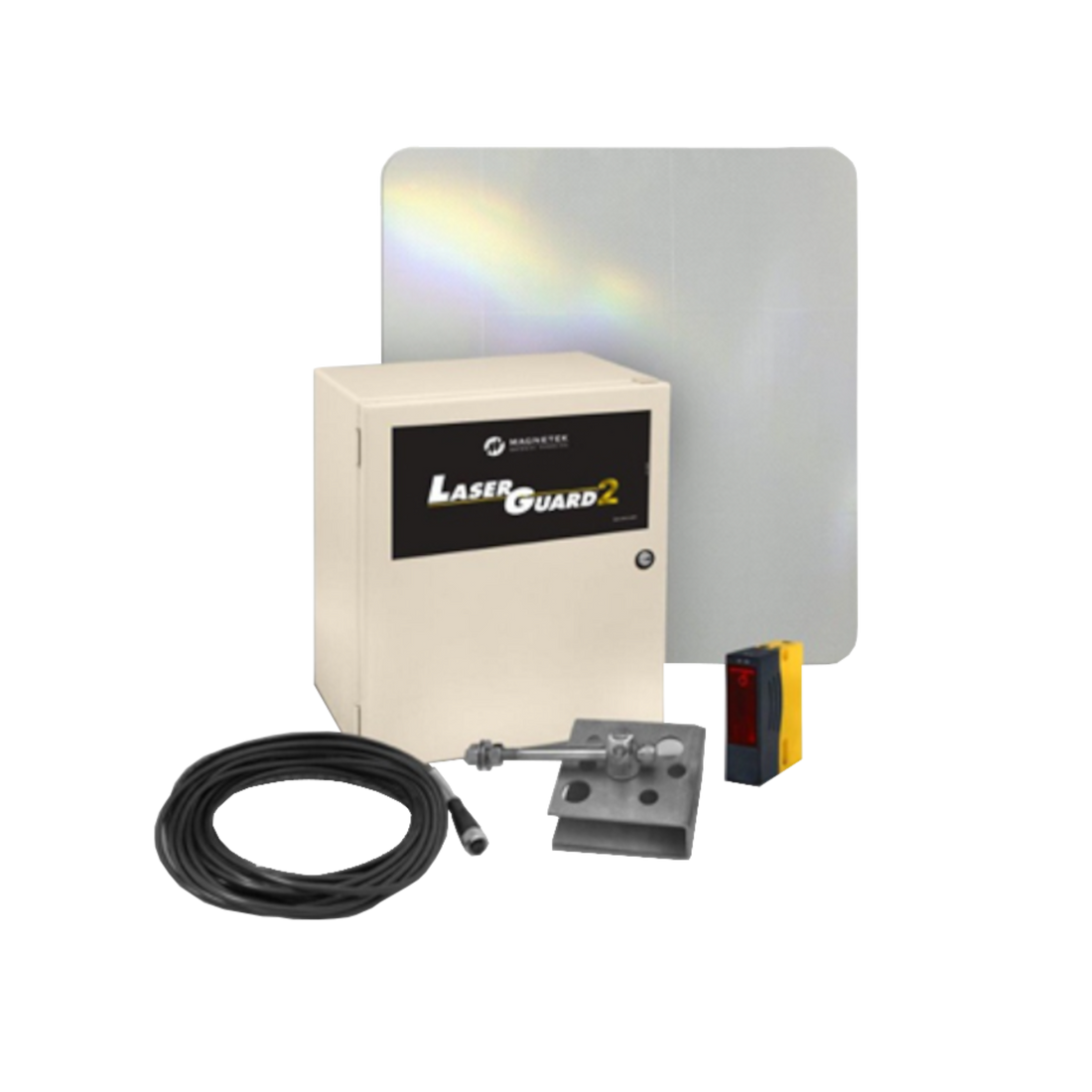

- Laser Sensor
- Sensor Mounting Bracket
- Sensor Cable
- Laser Support Unit
- 2 x 2 ft (0.6 x 0.6 m) Reflector
| LG2-H-4 |
| Designed for indoor service on AC or DC powered cranes (85-264 VAC or 120-370 VDC). The contacts are 10 amps, 270VAC/27VDC, and the range is 8in150ft. The system provides 3 contacts for controlled slowdown and a fault relay to indicate problems or to cut out power to the crane. Includes laser, bracket, enclosed Laser Support Unit, reflector, and a 10m cable. |
| LG2-L-4 |
| Designed for indoor service DC powered cranes (9-36 VDC). The contacts are 10 amps, 270VAC/27VDC, and the range is 8in-150ft. The system provides 3 contacts for controlled slowdown and a fault relay to indicate problems or to cut out power to the crane. Includes laser, bracket, enclosed Laser Support Unit, reflector, and a 10m cable. |
| LG2-H-4X |
| Designed for corrosive and harsh environment service on AC or DC powered cranes (85-264 VAC or 120-370 VDC). The contacts are 10 amps, 270VAC/27VDC, and the range is 8in-150ft. The system provides 3 contacts for controlled slowdown and a fault relay to indicate problems or to cut out power to the crane. Sensor and control are supplied in a NEMA 4X enclosure. Includes laser, bracket, Laser Support Unit, reflector, and a 0.5m cable. |
| LG2-L-4X |
| Designed for corrosive and harsh environment service on DC powered cranes (9-36 VDC). The contacts are 10 amps, 270VAC/27VDC, and the range is 8in-150ft. The system provides 3 contacts for controlled slowdown and a fault relay to indicate problems or to cut out power to the crane. Sensor and control are supplied in a NEMA 4X enclosure. Includes laser, bracket, Laser Support Unit, reflector, and a 0.5m cable. |
| LG2-H-4-25 |
| Designed for indoor service on AC or DC powered cranes (85-264 VAC or 120-370 VDC). The contacts are 10 amps, 270VAC/27VDC, and the range is 8in-150ft. The system provides 3 contacts for controlled slowdown and a fault relay to indicate problems or to cut out power to the crane. Includes laser, bracket, enclosed Laser Support Unit, reflector, and a 25m cable. |
| LG2-L-4-25 |
| Designed for indoor service on DC powered cranes (9-36 VDC). The contacts are 10 amps, 270VAC/27VDC, and the range is 8in-150ft. They system provides 3 contacts for controlled slowdown and a fault relay to indicate problems or to cut out power to the crane. Includes laser, bracket, enclosed Laser Support Unit, reflector, and a 25m cable. |
| LG2-H-4-40 |
| Designed for indoor service on AC or DC powered cranes (85-264 VAC or 120-370 VDC). The contacts are 10 amps, 27-VAC/27VDC, and the range is 8in-150ft. The system provides 3 contacts for controlled slowdown and a fault relay to indicate problems or to cut out power to the crane. Includes laser, bracket, enclosed Laser Support Unit, reflector, and a 40m cable. |
| LG2-L-4-40 |
| Designed for indoor service on DC powered cranes (9-36 VDC). The contacts are 10 amps, 270VAC/27VDC, and the range is 8in-150ft. The system provides 3 contacts for controlled slowdown and a fault relay to indicate problems or to cut out power to the crane. Includes laser, bracket, enclosed Laser Support Unit, reflector, and a 40m cable. |
| LG2-H-4-75 |
| Designed for indoor service on AC or DC powered cranes (85-264 VAC or 120-370 VDC). The contacts are 10 amps, 270VAC/27VDC, and the range is 8in-150ft. The system provides 3 contacts for controlled slowdown and a fault relay to indicate problems or to cut out power to the crane. Includes laser, bracket, enclosed Laser Support Unit, reflector, and a 75m cable. |
| LG2-L-4-75 |
| Designed for indoor service on DC powered cranes (9-36 VDC). The contacts are 10 amps, 270VAC/27VDC, and the range is 8in-150ft. The system provides 3 contacts for controlled slowdown and a fault relay to indicate problems or to cut out power to the crane. Includes laser, bracket, enclosed Laser Support Unit, reflector, and a 75m cable. |
|
LG2-H-4-IR |
| Designed for indoor service on DC powered cranes (120-370 VDC). Same as LG2-H-4, but includes intermediate relays to switch 250 VDC with 24 VDC coils. The range is 8in-150ft. The system provides 3 contacts for controlled slowdown and a fault relay to indicate problems or to cut out power to the crane. Includes laser, bracket, enclosed Laser Support Unit, reflector, and a 10m cable. |
